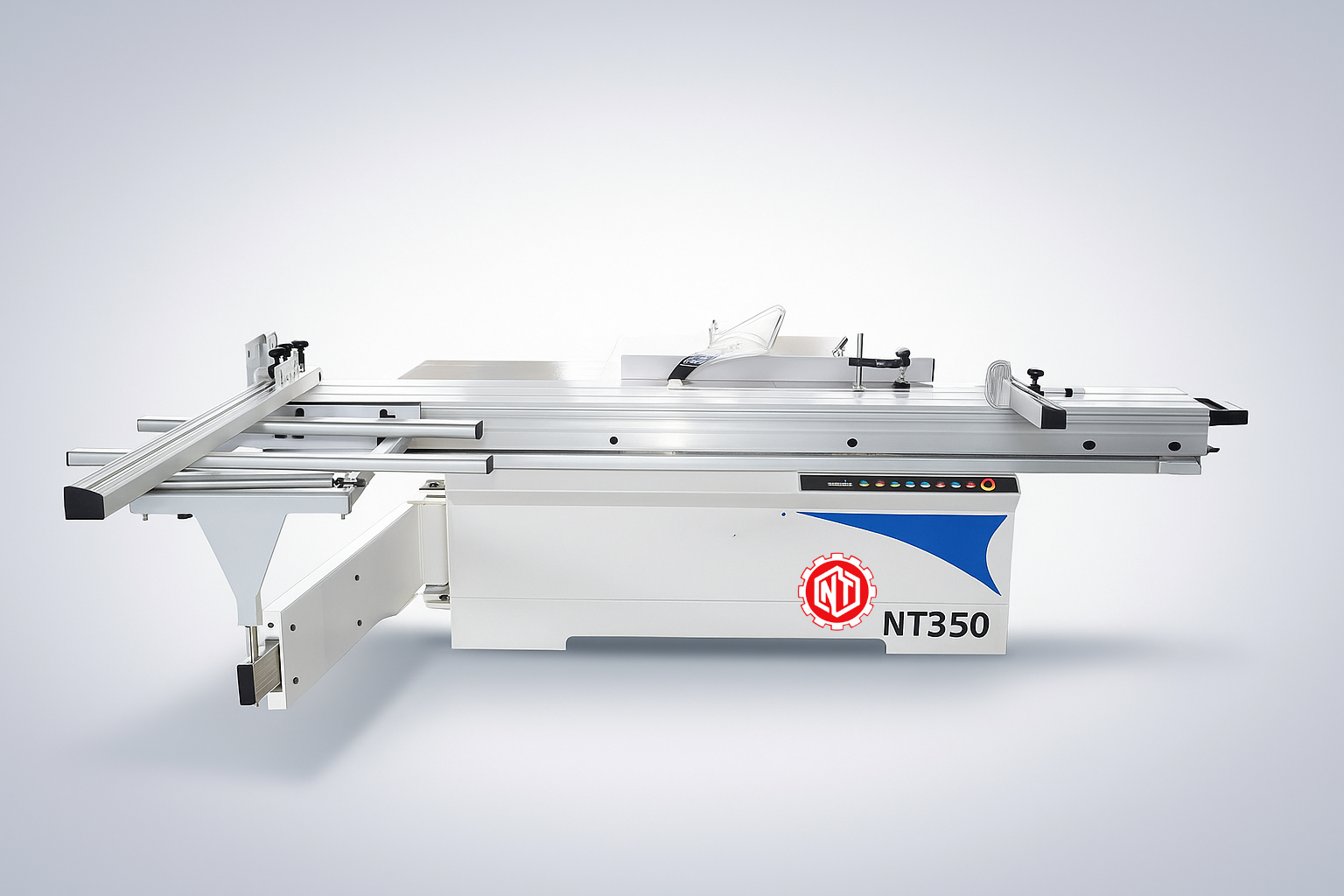

Sliding table saw NT-350/315 makes panel cutting easy and flexible. Powerful saw motor, easy running sliding table, precise guiding board and tilt adjustment. Height of saw blade can be adjusted electrically, main saw blade rotating speed up to 4000rmp and max. cutting length 3100mm. You could use to cut all sorts of panels through simple operation just as your requirements.
Model NT-350 NT-315 Main blade diameter 350x30mm 315x30mm Sliding Table 3200mm 3200mm Main blade speed 4000RPM 4000RPM Scoring blade dia. 120x20mm 120x20mm Scoring blade speed 8000RPM 8000RPM Max depth of cut at 45° 92mm 75mm Max depth of cut at 90° 120mm 103mm Max. rip capacity 1250mm 1250mm Main table size 910x550mm 910x550mm Ext. table size 910x760mm 910x760mm Side ext. table size 500x550mm 500x550mm Dust outlet 120mm 120mm Main motor 5.5KW(7.5HP) 4KW(5.5HP) Scoring motor 0.75KW(1HP) 0.75KW(1HP) NW/GW 600/700 KGS 600/700 KGS Packing - Main machine 2220x1030x1150mm 2220x1030x1150mm Packing - Sliding table 3560x420x210mm 3560x420x210mm
