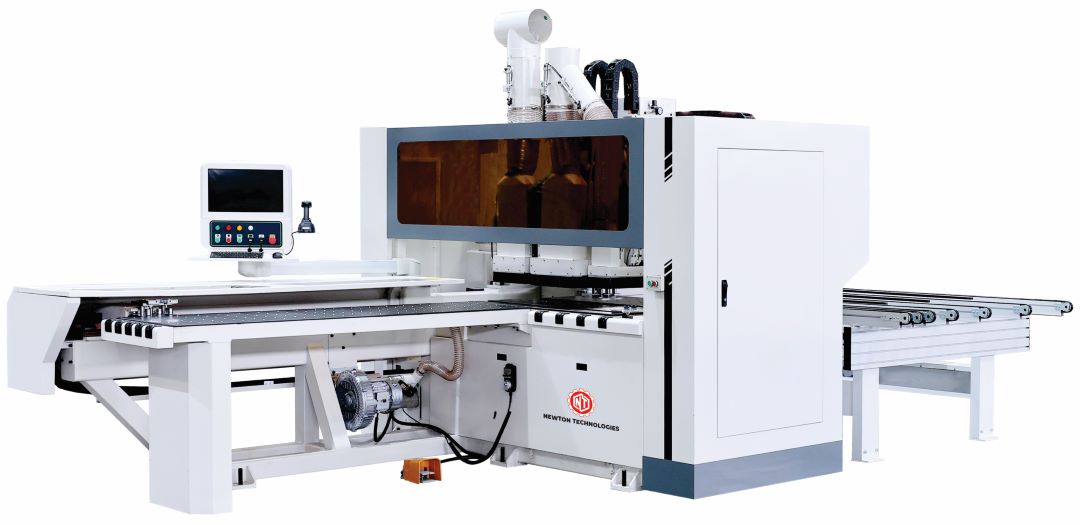

NT6 Cabinets Furniture Six Side Drill Mill Boring Machine Woodworking 6 Sides Cnc Drilling Machine:
NT6 CNC six-sided drill is a high-end CNC drilling equipment for panel furniture. It is mainly used for multi-sided drilling and grooving operations after panel furniture is cut.
The upper and lower double row drill group structure has high efficiency and high precision, and can complete six holes at one time. Optional single drill package, double drill package, double-station six-sided drill.
Intelligent discharging system, finished boards can be automatically transferred to the sorting area.
It can process all the holes on the front, back and four sides of the workpiece at one time. After the processing is completed, the clamps on the four sides are automatically loaded onto the sorting rotary platform, with high processing efficiency and high degree of automation.
Compared with manual or semi-automatic drilling machines, the continuous operation capability of the six-sided drill significantly shortens the processing cycle and speeds up product delivery.
Model NT6 Processing length 180~2800mm Processing width 35~1200mm Processing thickness 50mm Maximum machining speed 80/130/15m/min Upper drilling package structure 12 Vertical+8 Horizontal Bottom drilling package structure 9 Vertical Driving system Servo Drive Spindle power 3.5KW/18000RPM Structure of table Air bead countertop Working voltage AC380/3PH/50Hz Working air pressure >0.7Mpa Total power 15KW Total weight 4200Kg Overall size 6000x2800x2600mm
